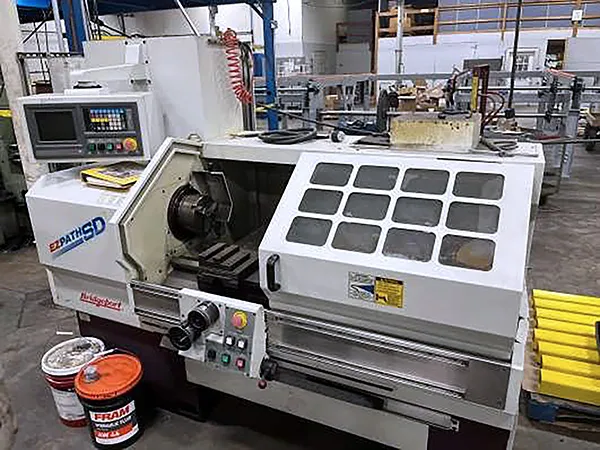

Bridgeport/ Romi EZ-Path SD 2000

MACHINE SPECIFICATIONS

• Max Swing Over Ways:

  17"

• Max Swing over Cross Slide:

  8"

• Chuck Size:

  8"

• Max Distance Between Centers:

  40"

• X-axis:

  8.6"

• Z-Axis Travel:

  40"

• X-Axis Rapid Traverse Rate:

  295 IPM

• Z-Axis Rapid Traverse Rate:

  394 IPM

• Spindle Nose:

  A2-5

• Spindle Bore:

  2.08"

• Spindle Speed Ranges:

  25 - 4,000 RPM

• Spindle Horsepower:

  7-1/2 HP

• Tailstock Quill Taper:

  #4 MT

• Tailstock Quill Travel:

  4.7"

• Approximate Machine Dimensions:

  100" X 49" X 77"

• Approximate Machine Weight:

  5,000 lbs.
