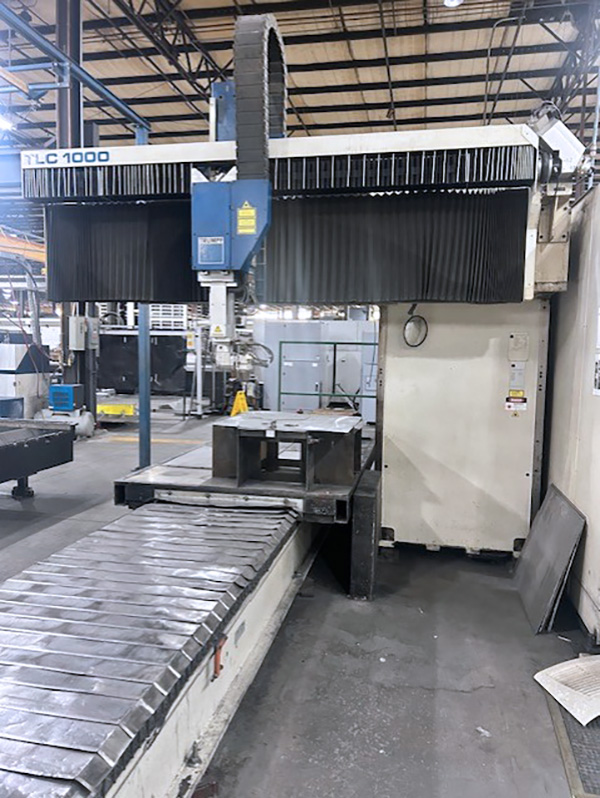

Trumpf LaserCell 1000 2006

MACHINE SPECIFICATIONS

• Type:

  5-Axis CO2 Laser

• Power Output:

  2000W

• Working Height:

  29.5"

• X-Axis Travel:

  39.37"

• Y-Axis Travel:

  59"

• Z-Axis Travel:

  29.5"

• C-Axis:

  n x 360 degrees (working Range)

• B Axis:

  +-120 degree working range

• X-Axis Speed:

  1,968.5 IPM

• Y-Axis Speed:

  1,968.5 IPM

• Z-Axis Speed:

  1,181 IPM

• B-Axis Speed:

  60 RPM

• Accuracy:

  .001mm

• Stroke:

  3.94" (Back Stop)

• Beam on Hours:

  6,809

• Laser on hours:

  49,213
